Wiso Oil Applications (East)
Highlights
EPA201, EPA202, EPA203, EPA204 and EPA225 are located in the Georgina Basin, of Devonian to Neoproterozoic age.
Most of these tenements are located to the north and EP221 is immediately south of EP222, and are relatively unexplored.
The Ryder Scott and USEIA assessments are based largely on previous activities on adjacent tenements, including the previously described activities of Statoil and Petrofrontier.
Highlights
EP222 is located in the southern Georgina Basin, of Devonian to Neoproterozoic age. Unexplored, it offers significant potential for oil and wet gas accumulation.
Ryder Scott has previously estimated about 26 billion barrels of unrisked prospective resources as a best (P50) case for the portion of the Basin, immediately to the north of EP222. The US Energy Information Agency has also indicated total risked wet and dry shale gas in place at 67 trillion cubic feet.
Previous activities on adjacent tenements include:
- Statoil and Petrofrontier completed 304km of 2D seismic in 2013.
- Statoil and Petrofrontier drilled 5 vertical wells in 2014.
AGO plans to undertake further seismic analysis and drilling across the next 5 years.
Granted Tenements (East) – EP222

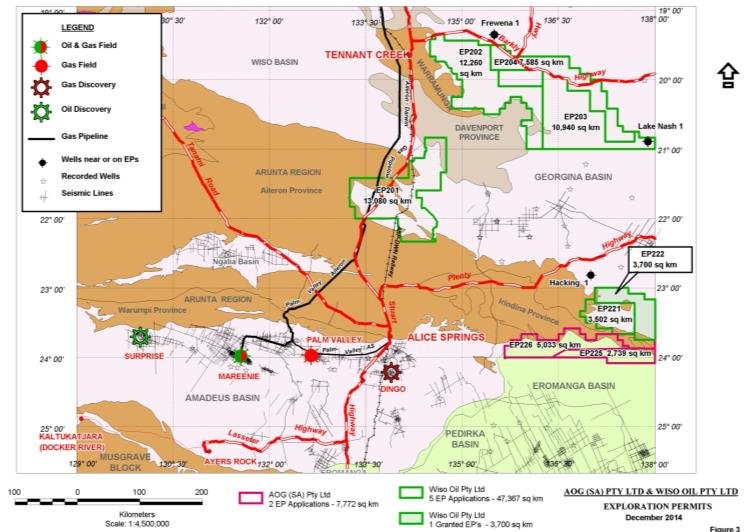

Wiso Oil P/L Georgina Basin acreage
Georgina Basin
- Un-metamorphosed Cryogenian to Devonian sediments
- Conventional and unconventional potential
- Active exploration hotspot with industry players including Total, Statoil, PetroFrontier, Central Petroleum
- No wells or seismic in Wiso Oil Pty Ltd’s acreage but numerous oil and gas indications in Queensland and NT
- Three wells completed in the Georgina Basin in 2012 (by Petrofrontier) with gas flows and oil fluorescence
- Mid Cambrian Arthur Creek formation: live oil stains and pyritic carbonaceous black ‘hot’ shale source rock, which overlies;
- Mid Cambrian Thorntonia Limestone: fossil oil columns
- Recommended reading: NTGS (2014) report from page 111

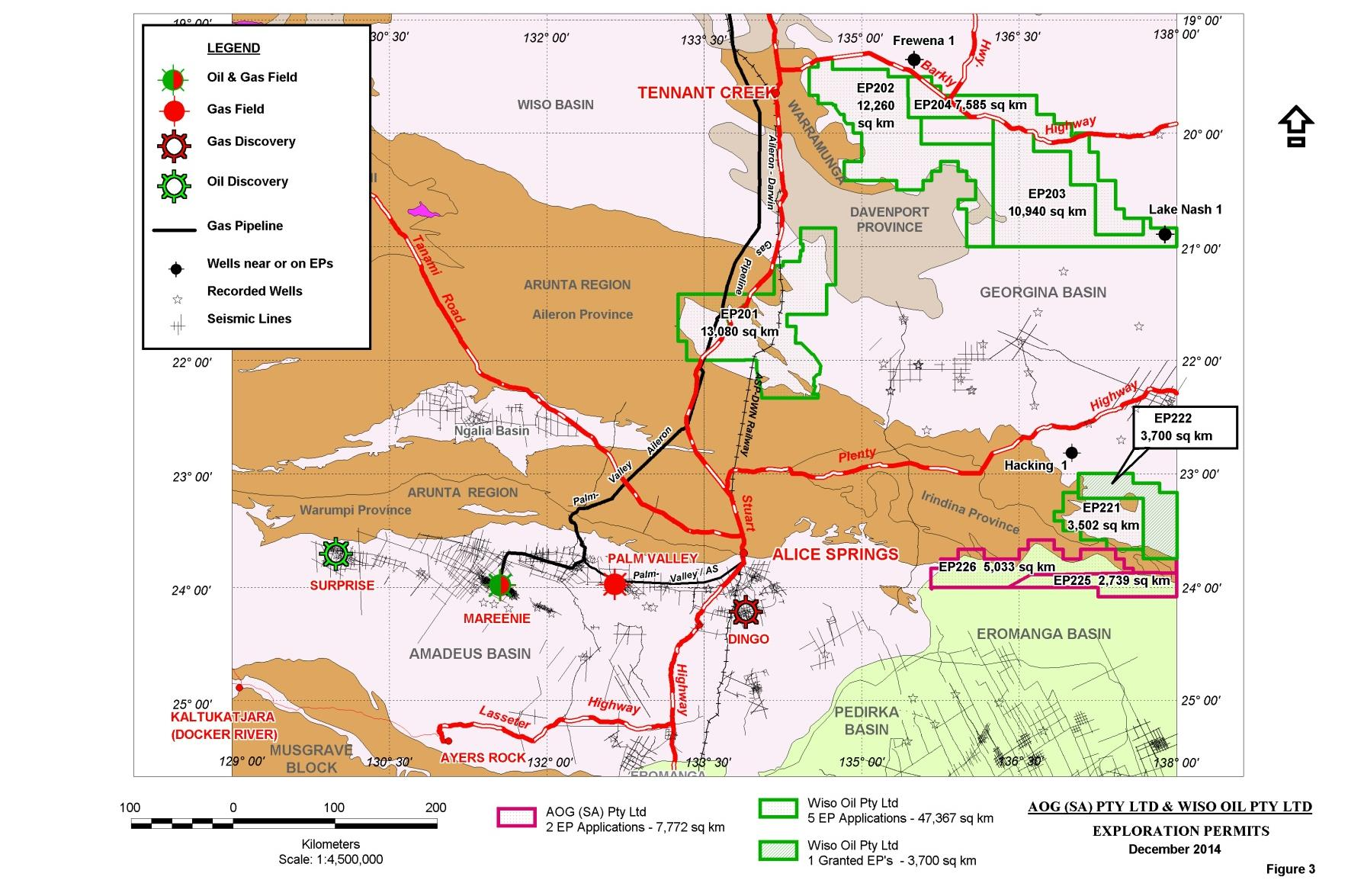

Wiso Oil P/L – Georgina Basin acreage

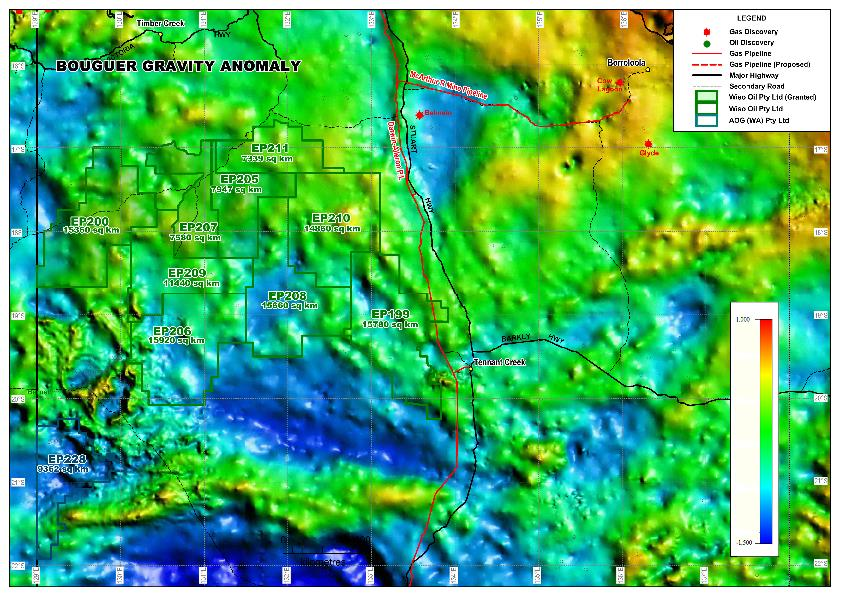

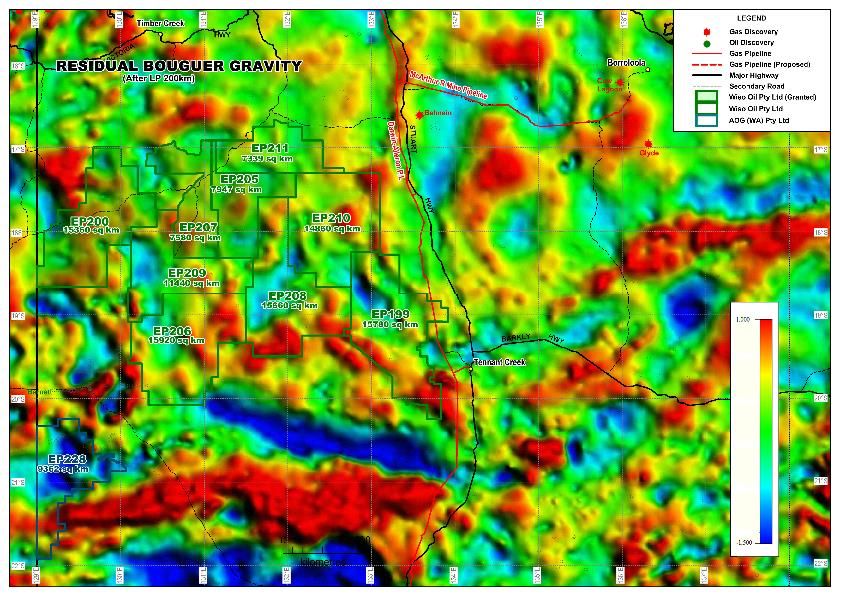

Wiso Oil P/L – Georgina acreage Gravity
Wiso Oil Pty Ltd
- Wiso Oil Pty Ltd holds 3 awarded EPs and 6 EPAs over Wiso Basin sequences which overlie prospective Proterozoic strata
- Blue Energy Ltd has farmed into these EPs and EPAs
- U7Wiso Oil Pty Ltd also holds 1 EP and 5 EPAs in the Georgina Basin

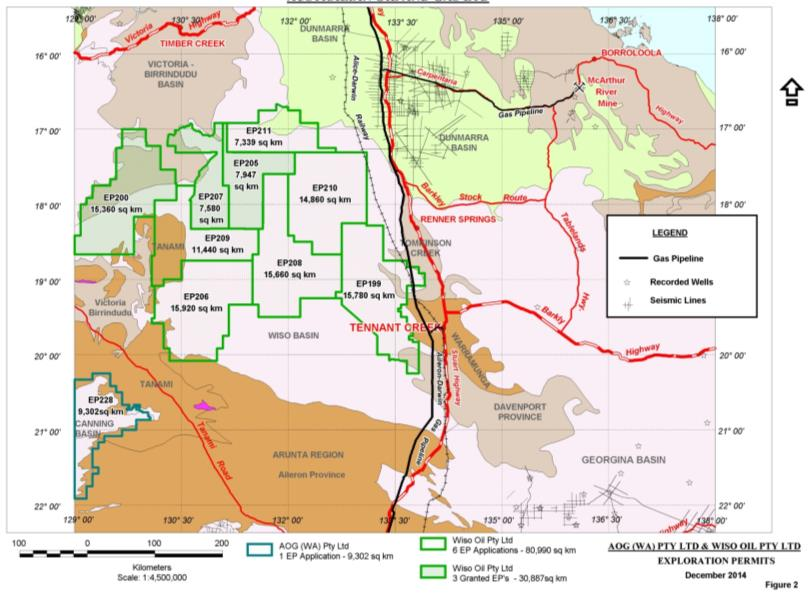

Wiso Oil P/L Wiso Basin acreage
Wiso Oil P/L Wiso Basin and deeper sequences
- Relatively thin Wiso Basin sequence (Cambro-Ordivician) over Proterozoic Birrindudu Basin and Victoria Basin sediments
- Correlative and contiguous to McArthur Basin and Beetaloo Sub-Basin
- No seismic or wells
- Blue Energy Ltd farm-in
- 3 EP and 6 EPA blocks covering 111,000km2
- a 50% interest will be transferred to Blue Energy Ltd upon completion of an agreed staged exploration program
- Undertook Geological & Geophysical Studies studies in year to 16 February 2014
- Includes magnetics and gravity analysis and modelling
- Recommended reading: Blue Energy Ltd Annual Reports for EPs 200, 205 207 including Geological Report

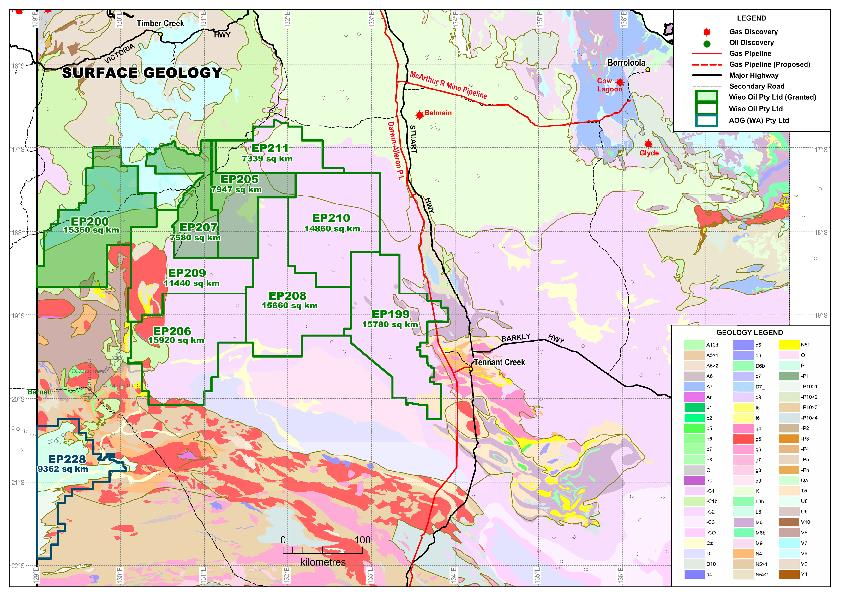

Wiso Oil P/L Wiso Basin acreage Geology
Wiso Oil P/L Wiso Basin acreage Geology
