Bonaparte Oil Pty Ltd

Home / Bonaparte Oil Pty Ltd

Bonaparte Oil Application EP175

Highlights

Early gravimetric and seismic studies suggest the existence of a pre-Permian Basin near Port Keats that offers hydrocarbon potential.  Three onshore wells (Kulshill #1, Kulshill #2 and Moyle #1) have indicated the presence of oil and methane in the impermeable Lower Permian and Lower Carboniferous formations.  These formations increase in thickness towards the west and south-west where small gasfields have been discovered in the onshore and offshore segments of the Bonaparte Basin.



Nearby Projects

  • Offshore Blacktip field provides Darwin’s gas supply.
  • South western onshore areas of the basin are known to hold ~0.4Tcf gas at >90% methane, ~4% ethane, >1% C3+ and low CO2.
  • Offshore Beehive field may contain more than 500million bbls/oil

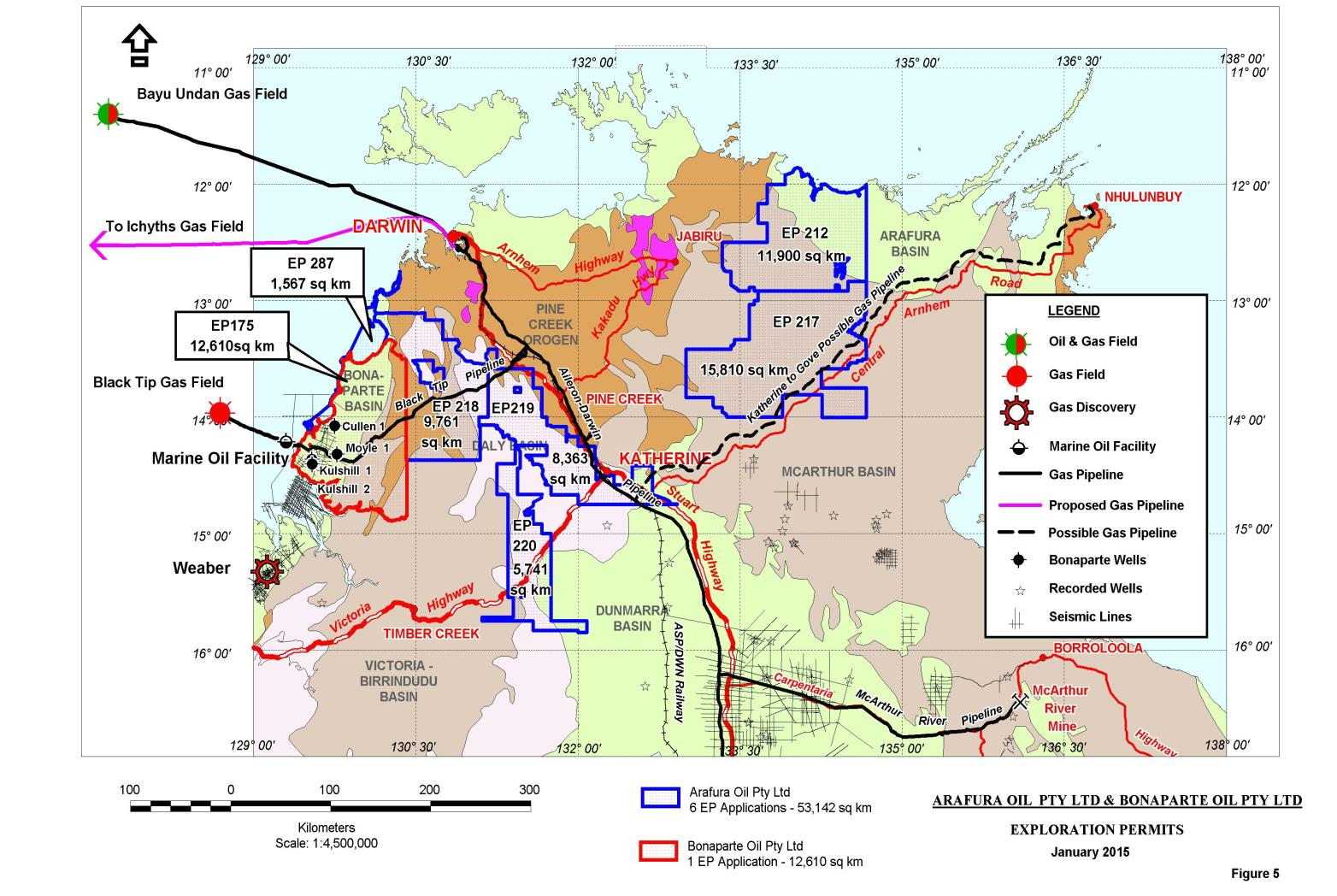

Arafura Oil P/L and Bonaparte Oil P/L acreage



Arafura and Bonaparte acreage

3 separate areas

  1. EPA 175: onshore Bonaparte Basin
  2. EPAs 218, 219 and 220: Daly Basin section over prospective Proterozoic basins
  3. EPAs 212 and 217: onshore Arafura Basin sequence over prospective McArthur Basin sediments

Bonaparte Oil Pty Ltd: EPA 175

Onshore Bonaparte Basin

  • Good potential source reservoirs and seals at a number of levels, especially late Proterozoic and Mesozoic
  • 3 petroleum systems identified in the onshore area
  • Includes conventional and unconventional plays
    • Carboniferous Milligans Formation is a source rock and potential gas- condensate/oil shale reservoir
    • Tight sandstone and limestone gas plays (targeted by Advent Energy)
  • Weaber gas field to the south west
  • Also: Victoria/Birrindudu Basins in south east of EPA
  • Some seismic + 3 wells (Cullen 1, Moyle 1 and Kulshill 1)
  • Recommended reading: NTGS 2014 report starting page 165

EPA 175

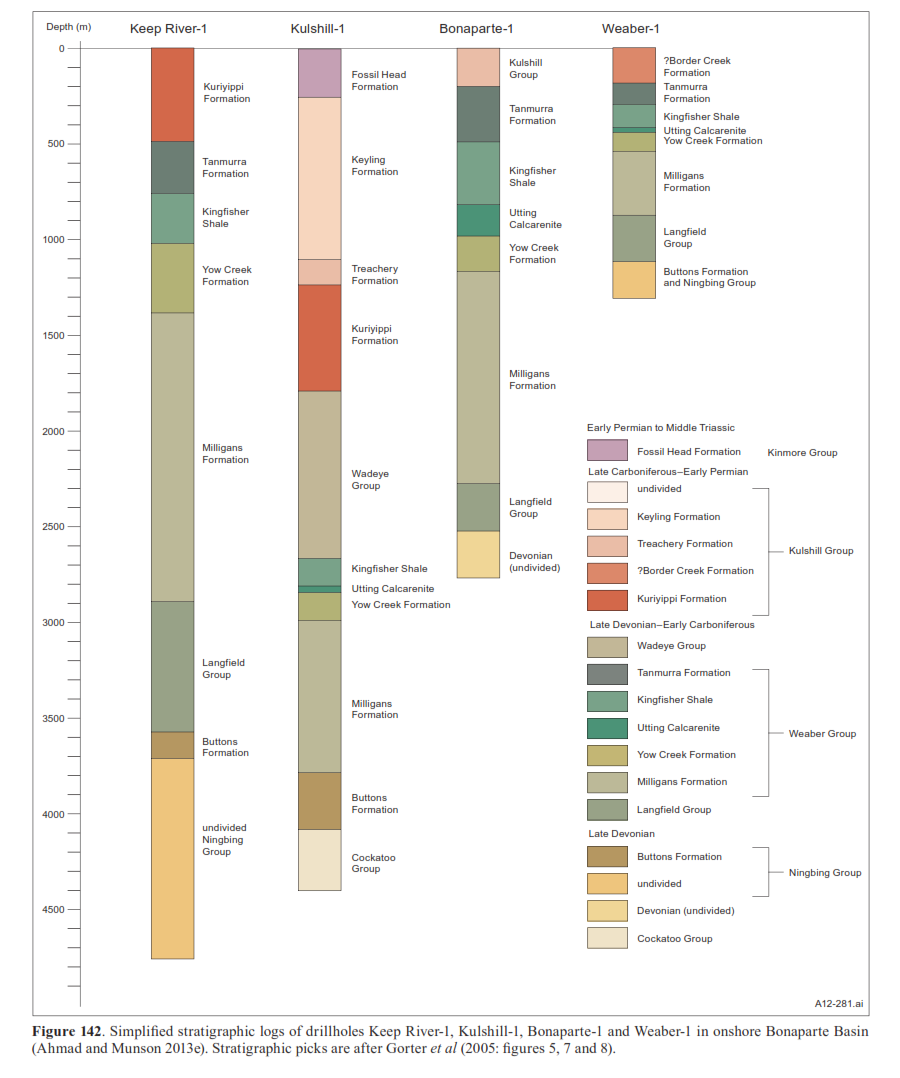

Source: NTGS 2014 report pages 170 and 175

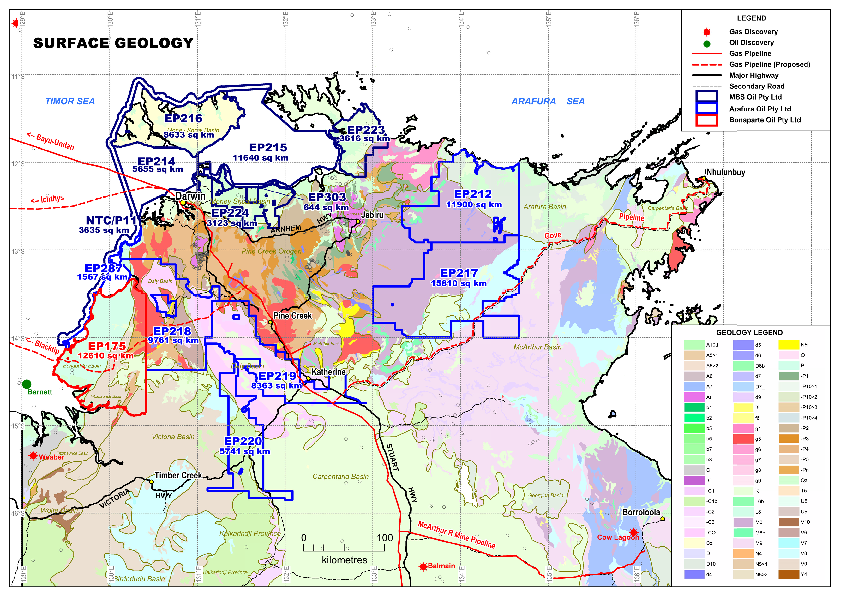

Arafura Oil P/L, Bonaparte Oil P/L and MBS Oil P/L Geology

Arafura Oil P/L, Bonaparte Oil P/L and MBS Oil P/L: Gravity
